Heavy-duty pipe bending requires the right tool for precision and efficiency. The 12 Ton Hydraulic Pipe Bender is a versatile and powerful solution designed to tackle challenging tasks across various industries. Whether you’re in HVAC installations, metal fabrication workshops, or industrial piping projects, this tool offers the precision, durability, and efficiency needed to streamline your work.
In this in-depth article, we will explore the key features and benefits of this hydraulic pipe bender. We’ll also provide a step-by-step guide on how to use the tool effectively and share real user feedback to give you a well-rounded understanding of its capabilities. By the end of this article, you’ll have a clear picture of whether this pipe bender is the right fit for your specific needs.
Key Features
Robust Construction and Durability
One of the standout features of the 12 Ton Hydraulic Pipe Bender is its sturdy construction. Built with a 45 steel frame, this tool is designed to withstand the rigors of heavy-duty use in demanding environments. The steel frame ensures smooth operation and longevity, making it suitable for applications in construction, shipbuilding, and other industries where durability is paramount.
The bender’s key components, such as the top tray, four legs, and base of the dies, are crafted from nodular cast iron. Nodular cast iron, with its nodular graphite inclusions and a tensile strength of around 370 MPa, offers superior toughness and shock absorption compared to regular cast iron, making it ideal for absorbing high-pressure loads in bending operations.
Powerful 12-Ton Hydraulic Jack
At the heart of this pipe bender lies a powerful 12-ton hydraulic jack. Capable of delivering up to 12 tons of force, this jack effortlessly bends metal pipes, including those with thick walls or high strength. The adjustable height, ranging from 330mm to 460mm, enhances versatility, accommodating a variety of pipe sizes and bending angles.
The 12-ton hydraulic jack operates at approximately 8,700 PSI, providing enough force to handle high-strength pipes and thick-walled materials with ease. This makes the tool suitable for applications such as plumbing, structural work, and decorative designs, ensuring precise and repeatable results every time.
Multiple Die Sizes for Versatility

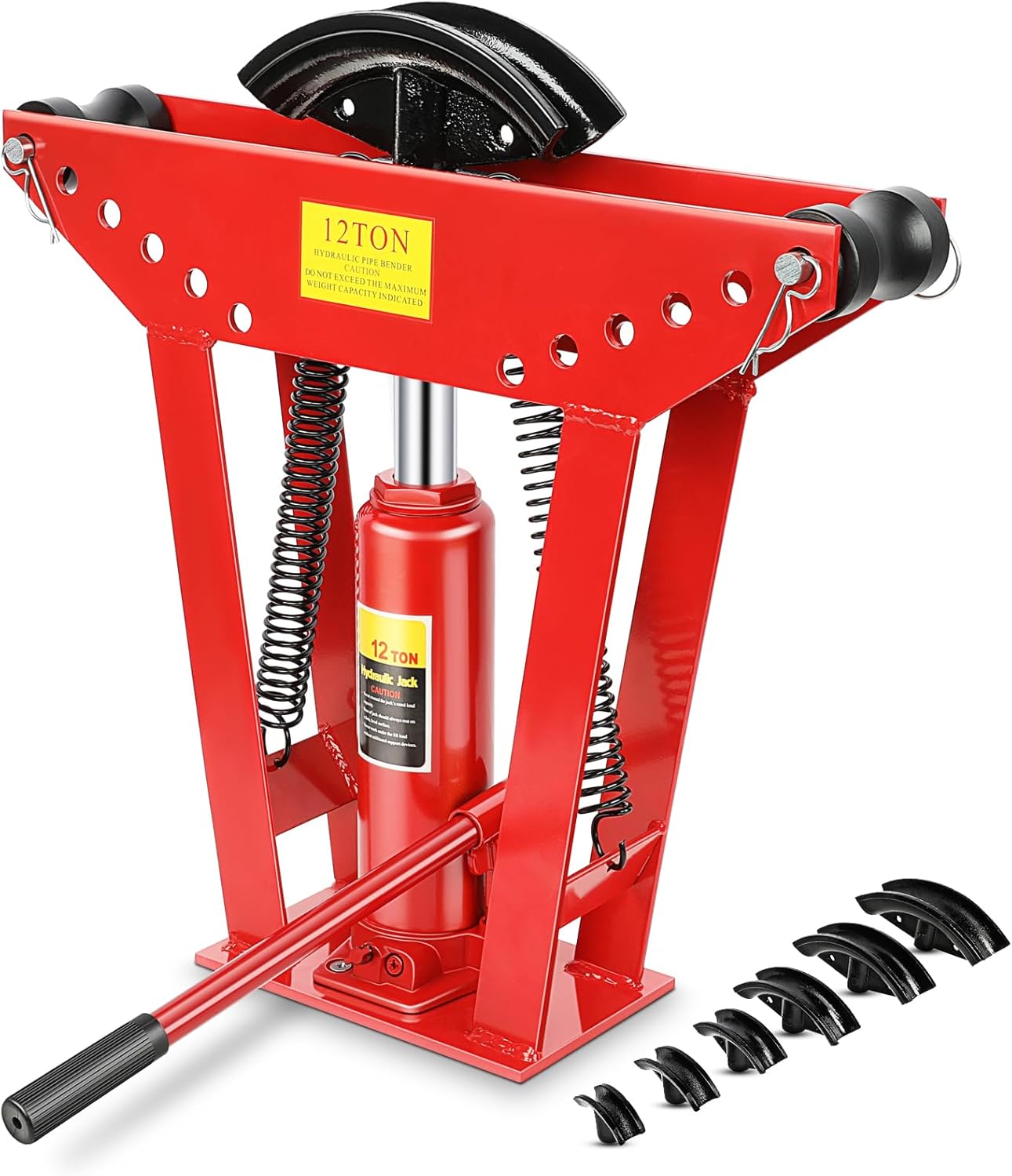

12 Ton Hydraulic Pipe Bender
Hydraulic pipe bender can work under any conditions. It is mainly used for pipe laying and repairing in electric power construction, highway and railroad construction, boiler, bridge, ship, furniture, decoration and other fields. Compact design, smooth appearance, wear-resistant, save bending time and labor. 12 Ton, Stroke: 5.12 (130 mm), Adjustable Height: 12.9 (330 mm) in Minimum, 18.1 (460 mm) in Maximum, Bending Range: 1/2-2 (1.3-5.1 cm), Diameter: 1/2 (1.3 cm), Oil Capacity: 750g (1.65 lbs).
The 12 Ton Hydraulic Pipe Bender comes equipped with six precision-crafted dies in the following sizes: 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, and 2″. These dies allow the tool to handle a wide range of pipe diameters, making it versatile enough for different projects, from small-diameter intricate designs to large-scale heavy-duty applications.
The precision design of these dies ensures accurate and consistent bends, reducing the risk of damage or deformities in the pipe. The bender ensures precision with a bend accuracy of +/- 1°, making it ideal for precision-driven projects like custom pipe fittings and decorative ironwork.
90° to 180° Bending Angles
Another feature that sets this tool apart is its ability to create bends ranging from 90° to 180°. Whether you’re crafting sharp elbows, gentle curves, or complete U-bends, the adjustable angle range provides unparalleled flexibility.
This feature is particularly useful in applications such as custom exhaust systems, furniture fabrication, and plumbing installations.
Adjustable Rollers and Precision Molds
To ensure smooth and consistent bending, the 12 Ton Hydraulic Pipe Bender is equipped with six precision casting molds and adjustable rollers. These molds securely hold the pipe during bending, while the rollers provide the necessary support and guidance for optimal results.
This combination ensures minimal material distortion and maximum accuracy, even in high-precision projects.
High-Quality Hydraulic Fluid
The tool relies on No. 15 hydraulic oil, specifically chosen for its superior performance due to its high viscosity index and exceptional anti-wear properties. No. 15 hydraulic oil, with a viscosity index of 150, ensures consistent performance even in temperature extremes, reducing internal friction and wear on the hydraulic system. Its anti-wear and anti-corrosion properties protect the hydraulic system, minimizing maintenance and extending the tool’s lifespan.
Material of Construction
Beyond the steel frame and cast iron components, the use of premium materials throughout the tool ensures long-lasting durability and reliable performance under heavy loads. 45 steel, known for its tensile strength of around 600 MPa and its carbon content of approximately 0.45%, provides excellent resistance to bending and deformation during operation, ensuring long-term reliability. This material is commonly used in industrial applications due to its balance of strength and machinability.
Weight and Dimensions
The pipe bender’s compact yet robust design ensures portability while maintaining the stability required for precision work. Provided it is set up on a stable surface, it offers reliable operation and prevents tipping during use. The lightweight design allows for easy transport, while its dimensions ensure that it fits comfortably in most workshop spaces.
How to Use: Step-by-Step Guide
Step 1: Select the Appropriate Mold and Roller
Choose the mold and roller based on your pipe’s diameter and the desired bend. Consider the pipe material, wall thickness, and bend radius to ensure optimal results.
Step 2: Insert the Mold into the Base
Securely insert the selected mold into the base of the bender. Ensure proper alignment to avoid uneven or inaccurate bends.
Step 3: Place the Pipe into the Mold
Align the pipe with the mold, ensuring it is centered. Use markings on the pipe and mold to achieve precise positioning.
Step 4: Adjust the Nut to Initiate Bending
Turn the adjustment nut to apply pressure through the hydraulic jack. Gradually increase the hydraulic pressure while frequently checking the pipe’s alignment to prevent uneven bends. Applying pressure incrementally also minimizes the risk of material crimping, particularly for softer metals like aluminum.
Step 5: Release the Pressure and Remove the Pipe
Once the desired angle is achieved, slowly release the pressure by turning the nut in the opposite direction. Carefully remove the pipe and inspect the bend for consistency. For advanced projects, such as creating compound or offset bends, slightly over-bending the pipe by 1–2° can counteract springback in materials prone to this effect.
Advanced Use Cases
For complex piping installations, such as HVAC or intricate plumbing designs, consider marking reference points along the pipe for sequential bends. This technique minimizes errors in multi-bend applications. Additionally, this tool can create compound bends (multiple bends in different directions) and offset bends, reducing the need for additional fittings and joints.
Common Issues and Troubleshooting
Hydraulic Leaks
If hydraulic leaks are noticed, check the seals around the hydraulic jack and replace them promptly to avoid a drop in bending pressure. Regular maintenance of the hydraulic fluid and components will ensure longevity.
Pipe Slipping
To prevent the pipe from slipping during operation, ensure it is properly aligned in the mold and that the mold is securely seated in the base.
Springback
For materials prone to springback, slightly over-bend the pipe by 1–2° to ensure that the final result meets your exact specifications.
Package Contents
When you purchase the 12 Ton Hydraulic Pipe Bender, you can expect the following components:
- 12T Hydraulic Jack: The core of the tool’s bending capability.
- Frame: A sturdy steel frame for stability.
- 6 Dies: Precision-crafted dies in sizes ranging from 1/2″ to 2″, ensuring versatility across various pipe diameters.
- Manual: Detailed user instructions and maintenance guidelines.
Each component is designed to enhance the tool’s usability and ensure a smooth operation.
FAQ
Q: Can the 12 Ton Hydraulic Pipe Bender handle stainless steel pipes?
A: Yes, the bender is capable of bending stainless steel pipes up to 2 inches in diameter, but using the correct die size and gradual pressure is essential to prevent crimping or warping.
Q: How often should I replace the hydraulic oil?
A: It’s recommended to check and replace the hydraulic oil every six months or after every 500 hours of use to maintain optimal performance.
Q: What is the maximum pipe wall thickness the bender can handle?
A: The bender works effectively on mild steel up to 0.12″ wall thickness, stainless steel up to 0.1″, and similar ranges for copper and aluminum pipes.
User Feedback and Ratings
Keyan Shah – 4.0/5 Stars
“Worked well for the A513 mild steel tube I have, 1.5×0.12. Mild crimping but absolutely worth it for the price.”
Daemeon R. – 4.0/5 Stars
“The unit works fine on the range of pipes advertised. However, it constantly falls over, and there’s no way to mount it to a larger base. To address this, consider using additional supports, such as mounting brackets or clamps, to secure the bender during operation. These modifications can significantly improve stability and enhance usability.”
Steve Dawson – 3.0/5 Stars
“While the bender performs well with standard pipes, I found it less effective on thicker or more rigid materials without additional adjustments.”
This feedback highlights the tool’s effectiveness but also points to potential issues such as stability and mild crimping, depending on pipe material and usage.
Final Thoughts
The 12 Ton Hydraulic Pipe Bender is a robust, versatile, and high-performing tool designed for demanding pipe bending applications. Its durability, precision, and flexibility make it an excellent choice for professionals and DIY enthusiasts alike.
While stability issues may arise in certain setups, these can be mitigated with proper adjustments or mounting solutions like clamps or brackets. The integrated pressure relief valve ensures that the hydraulic system automatically releases excess pressure, preventing overloading and extending the tool’s lifespan.
With its comprehensive feature set and high user satisfaction, the 12 Ton Hydraulic Pipe Bender is a reliable investment for anyone needing precision pipe bending in various applications, from small-scale projects to industrial installations.
